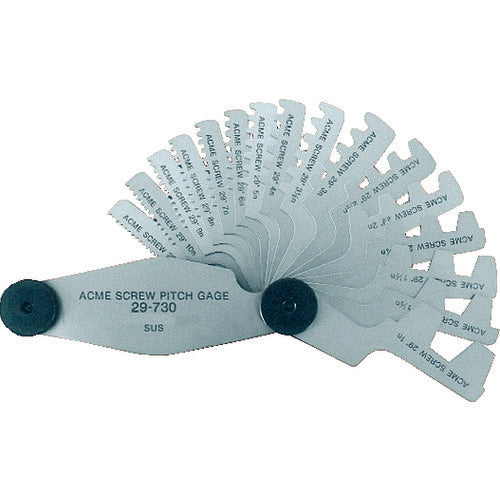

TRUSCO Acme Screw Pitch Gauge, Measurement Range 1-12 Threads, 16 Pieces, 29-730, 1 Piece

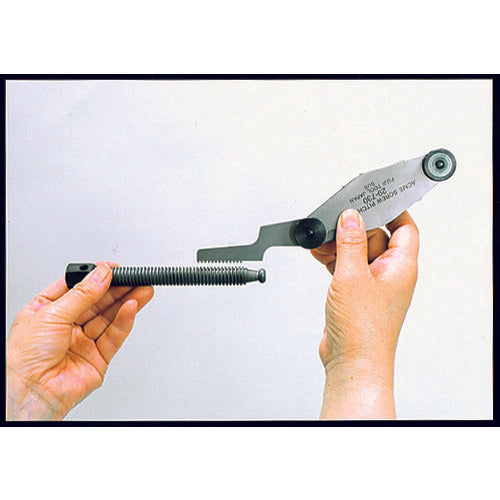

Catalog number: 29-730 Features: ●The pitch of Acme-type trapezoidal threads can be measured easily and accurately. ●The thickness is 0.8 mm. Applications: ●For pitch measurement. Specifications: ●Dimensions (mm): 121 x 38 ●Precision (mm): 2 to 7 mm (12 teeth to 3 1/2) ±0.03 mm 8 to 16 mm (3 teeth to 1 1/3) ±0.04 mm 20 mm (1 tooth) ±0.05 ●Number of pieces (pieces): 16 ●Summary: 29°, 1 to 12 teeth (inch) ●Set details: 1, 1 1/3, 1 1/2, 1 3/4, 2, 2 1/2, 3, 3 1/2, 4, 5, 6, 7, 8, 9, 10, 12 (inch) ●Precision: 2 to 7 mm (12 teeth to 3 1/2) ±0.03 mm 8 to 16 mm (3 teeth to 1 1/3) ±0.04 mm 20 mm (1 tooth) ±0.05 mm Material/Finish: ●Stainless steel (SUS430)
