TRUSCO Urethane Coil Hose Thin Roll L-Shaped 3.4m CH-750 1 pc

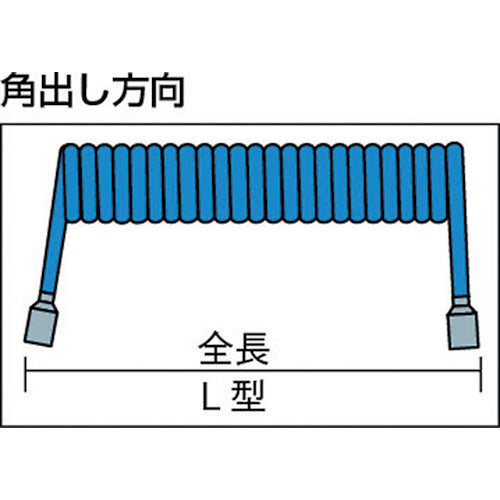

Catalog number: CH-750 Features: ●Excellent flexibility, elasticity, oil resistance, abrasion resistance, heat resistance, and operability. ●A urethane air hose that makes use of the characteristics of polyurethane resin. Specifications: ●Coil diameter (mm): 28 ●Color: Blue ●Hose inner diameter x outer diameter (mm): 5 x 8 ●Usage range (m): 3.4 ●Total length (mm): 850 ●Coil length (mm): 750 ●Outer diameter (mm): 8 ●Inner diameter (mm): 5 ●Usage fluid: Air ●Fluid temperature: -5 to 60°C ●Usage pressure: 0.8MPa ●Hose inner diameter x outer diameter: 5 x 8mm ●Connection joint: G1/4 universal female thread, with G1/4 female thread ●Angle direction: L-shaped/L-shaped Material/Finish: ●Polyurethane Caution: ●Do not use in places where the connection fittings are subject to impact or may get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connection fittings flying out. ● When separating connecting fittings, hold them with your hands. ● After connecting the connecting fittings, pull them gently from both sides to make sure they do not come loose.
