TRUSCO Air Hose Spatter Blade Tube Outer Diameter 12.5mm Total Length 10m with Coupling SPB-8.5-10 1 Roll

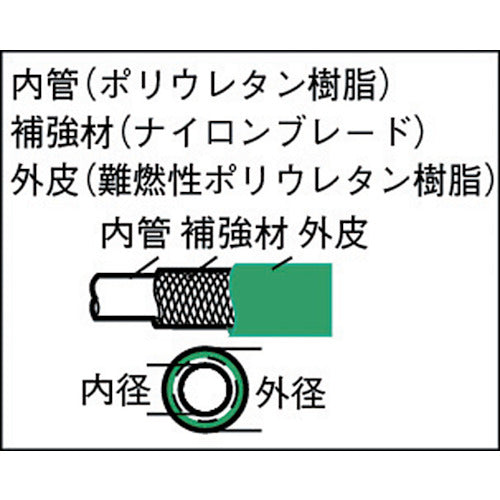

Catalog number: SPB-8.5-10 Features: * Uses flame-retardant polyurethane resin to prevent melting and fire spread caused by sparks such as spatter. * Features the same light weight, flexibility, and abrasion resistance as polyurethane hoses, and is easy to use. * Outer cover is made of water-resistant polyurethane material, which is weather resistant and safe for outdoor work. Applications: * Pneumatic and instrumentation control equipment, etc. Specifications: Color: Green; Outer diameter (mm): 12.5; Inner diameter (mm): 8.5; Total length (m): 10; Wall thickness (mm): 2; Connection joint: CHS-8.5H-MP/C4P-8.5H; Fluid used: Air; Allowable bending radius (mm): SPB-6.5-10 60, SPB-8.5-10 70, SPB-11-10 100; Fluid temperature: -5 to 60°C (no freezing); Operating pressure: 1.5MPa (when used at room temperature); Material/Finish: Flame-retardant polyurethane resin; Caution: Do not use in places where the connection fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connection fittings coming loose. When separating connection fittings, hold the fittings in your hands. After connecting the connection fittings, gently pull them from both sides to make sure they do not come loose. ●The normal temperature environment for the operating pressure is approximately 20°C.
