TRUSCO Air Hose Spatter Blade Tube 11 x 16mm 50m Drum Roll SPB-11-50 1 Roll

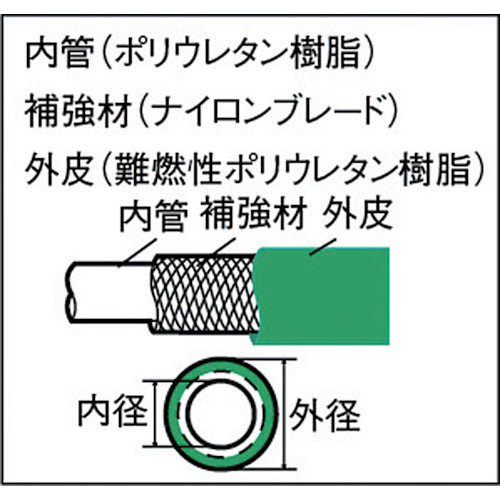

Catalog number: SPB-11-50 Features: ● Uses flame-retardant polyurethane resin to prevent melting and fire spread caused by sparks such as spatter. ● Features the same light weight, flexibility, and abrasion resistance as polyurethane hoses, and is easy to operate. ● The outer cover is made of water-resistant polyurethane material, which is weather-resistant and safe for outdoor work. ● Can be cut to the required length, so it can be used according to the purpose and location of use. Applications: ● Pneumatic and instrumentation control equipment, etc. Specifications: ● Color: Green ● Outer diameter (mm): 16 ● Inner diameter (mm): 11 ● Total length (m): 50 ● Wall thickness (mm): 2.5 ● Fluid used: Air ● Allowable bending radius (mm): SPB-6.5-100 60, SPB-8.5-100 70, SPB-11-50 100 ● Fluid temperature: -5 to 60°C (no freezing) ● Operating pressure: 1.5MPa Material/Finish: ● Flame-retardant polyurethane resin Caution: ● Use a coupling designed specifically for bladed hoses. Also, be sure to check the operating pressure of the coupling you are using. ● When separating connecting fittings, hold them with your hand. ● After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose. ● Use couplings designed specifically for blade hoses. Also, be sure to check the operating pressure of the coupling you are using. Using the wrong coupling or with the wrong air pressure may damage the hose. ● The normal temperature environment for the operating pressure is approximately 20°C.
