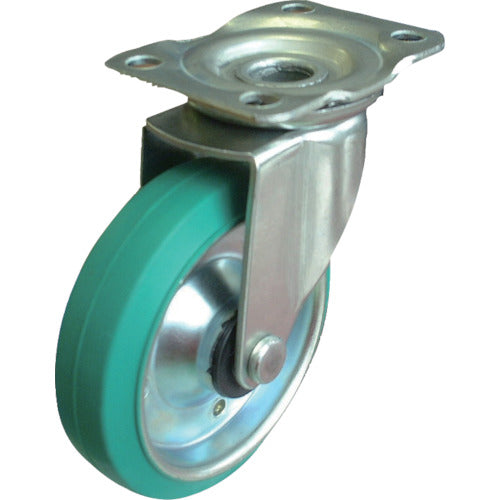

TRUSCO Eco Transport Vehicle 5-Wheel Type Swivel Caster φ100 Rubber Caster SD5-100J 1 pc

Catalogue number: SD5-100J Features: ● The wheel section uses a durable steel wheel, making it robust and strong. ● The wheels use rubber, which provides good rebound and smooth starting. ● The steel section is trivalent chromium plated. Applications: ● Swivel caster for SD-type eco transport car 5-wheel type. Specifications: ● Caster diameter (mm): 100 ● Mounting seat (mm): 81 x 62 ● Mounting pitch (mm): 63 x 40 ● Wheel material: Styrene butadiene rubber (SBR) ● Wheel diameter D (mm): 100 ● Mounting height H (mm): 125 ● Wheel width (mm): 25 ● Allowable load (N): 490 ● Allowable load (kgf): 50 ● Mounting pitch X x Y (mm): 63 x 40 ● Mounting seat A x B (mm): 81 x 62 ● Mounting hole diameter P (mm): 9 ● Swivel type ● Plate type
