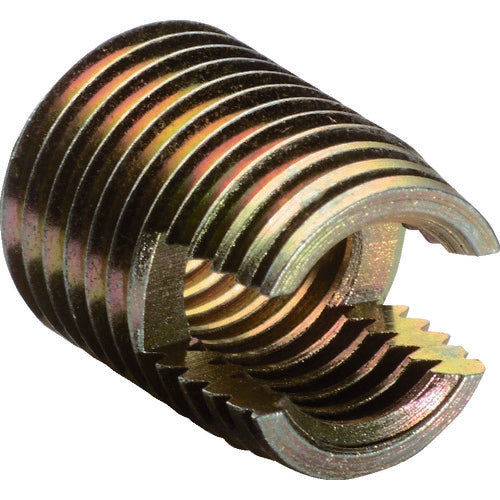

TRUSCO Enzat [[R Down]] 302 Steel Split Groove M5 P0.8 L10 302-M5-P0.8-2DNS 1 PK

Catalog number: 302-M5-P0.8-2DNS Features: ● Enzat [R] is an easy-to-use insert nut that can be used on plastics and aluminum where direct tapping can easily damage the female thread. ● It has a split groove or three-hole cutting edge, and cuts the mating material with its own blade, so no pre-tapping is required. ● By reinforcing the female thread with Enzat [R], it is possible to make parts from aluminum or plastic, which helps to reduce weight. ● Enzat [R] supports the force applied to the internal thread with an external thread that is one size larger, so it can withstand higher forces than direct tapping. ● Reinforcement using Enzat [R] is limited by the shear strength specific to the mating material or the mechanical strength of the bolt used. ● Type 302 (split groove type) is a general-purpose type that can be used on aluminum alloys with high machinability and plastic resins with high plasticity. Applications: ● For reinforcing and preventing damage to the internal thread and for strengthening the fastening of the external thread. Specifications: ●Compatible bolt thread: M 5 ●Counterbore diameter (mm): Resin 7.2-7.5, light metal 7.5-7.6 ●Internal thread pitch (mm): 0.80 ●Length (mm): 10 ●External thread (mm): 8 ●Slotted groove type Material/Finish: ●Steel SUM22L Note: ●Enzat [R below] is a registered trademark of KKV Corporation.
