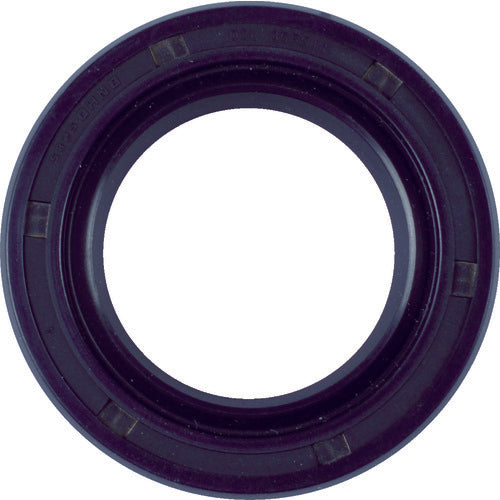

TRUSCO Oil Seal Shaft Diameter 30 x Outer Diameter 45 x Thickness 8 OSL-30458 1 pc

Catalogue number: OSL-30458 Features: ● Spring-loaded type for improved sealing. ● Used as a seal for rotating shafts, with dust guard to prevent minor dust from entering from outside. ● Made of nitrile rubber with excellent oil resistance. Applications: ● General industrial machinery such as automobiles, ships, railway vehicles, construction machinery, and agricultural machinery. Specifications: ● Shaft diameter (mm): 30 ● Outer diameter (mm): 45 ● Thickness (mm): 8 ● Operating temperature range: -30°C to 120°C ● Pressure: 0 to 0.03MPa Material/Finish: ● Rubber: Nitrile rubber (NBR) ● Spring: Piano wire (SWP) ● Metal ring: Cold-rolled steel plate
