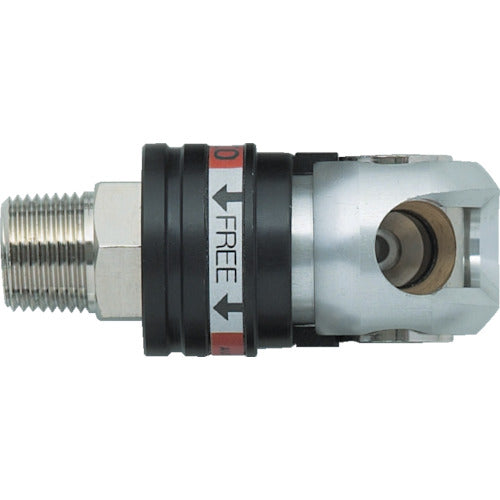

TRUSCO Auto-lock Swing Coupling Male Thread R1/4 TSC-22SM 1 pc

Catalog number: TSC-22SM Features: ● Connection can be performed without pressure, so it is safe even for women and those who are unfamiliar with the process. ● Residual pressure is automatically released when disconnecting, reducing recoil and unpleasant noise. ● Can be connected to general couplings (with some exceptions). ● There is no loss of air flow, maximizing the capabilities of air tools. ● Auto-lock mechanism ensures secure connection. Specifications: ● Pressure resistance (MPa): 1.5 ● Counterpart mounting size: Female thread 1/4 ● Maximum operating pressure (MPa): 1.5 ● Fluid used: Air ● Operating temperature range (℃): -10 to 60 ● Operating pressure: 1.5MPa ● Connection: Male thread R1/4 ● Body size (mm): 30 x 70 ● Operating temperature range: -10 to 60℃ ● Operating pressure: 1.5MPa Material/Finish: ● Aluminum, brass
