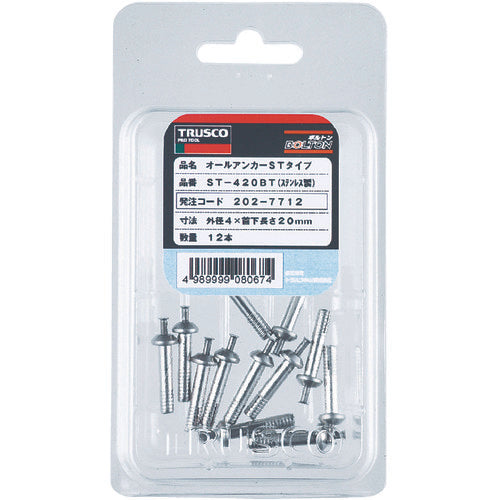

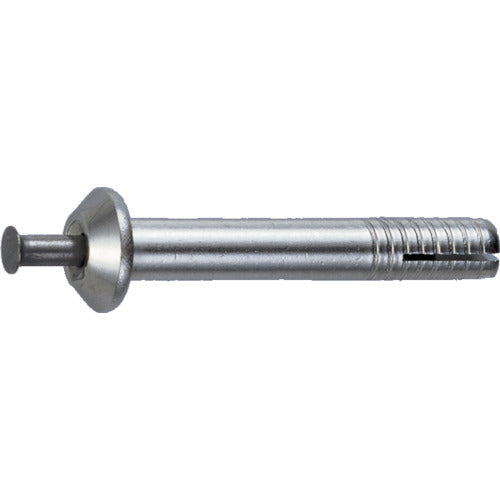

TRUSCO All Anchor ST Type Stainless Steel 4X20 12 Pieces (Concrete Anchor/Core Rod Drive-in Type) ST-420BT 1 PK

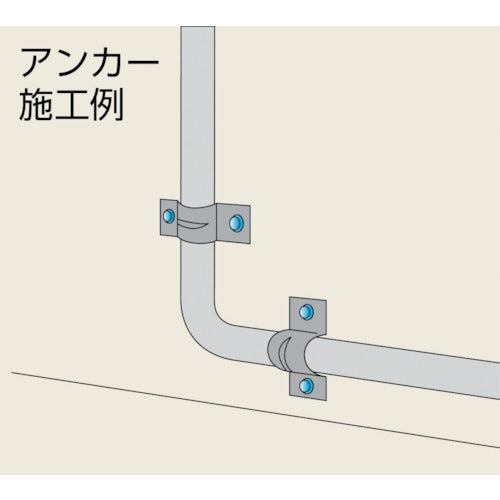

Catalog number: ST-420BT Features: ● An anchor ideal for installation in places where removal is not required. ● Installation is as simple as driving in the core rod, so you can see when installation is complete at a glance. ● Can be installed directly from above the object being attached. Applications: ● For installing blinds, lighting fixtures, wiring, piping, and hanging hardware. Specifications: ● Maximum object thickness (mm): 4 ● Pilot hole diameter (mm): 4.3 ● Maximum tensile load (kN): 2.8 ● Outer diameter (mm): 4 ● Head diameter dk (mm): 8 ● Neck length (mm): 20 ● Packed Material/Finish: ● Stainless steel (SUS304 series) Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]].
