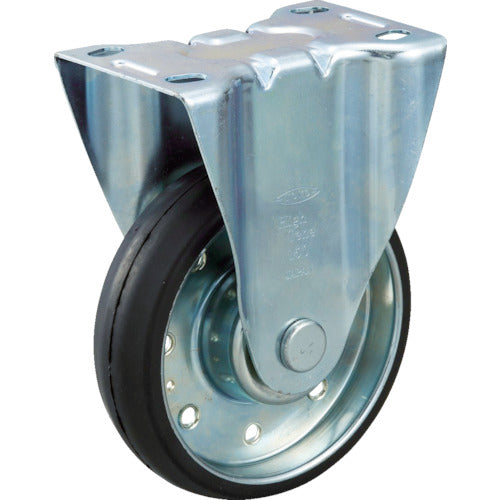

TRUSCO Caster High Tensile Pressed Rubber Wheel with Fixing Bracket φ150 HTTK-150 1 pc

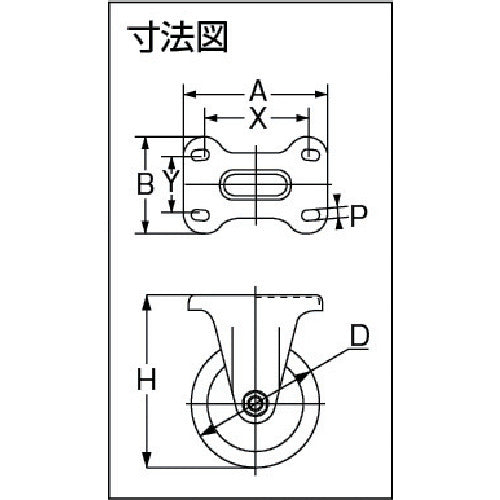

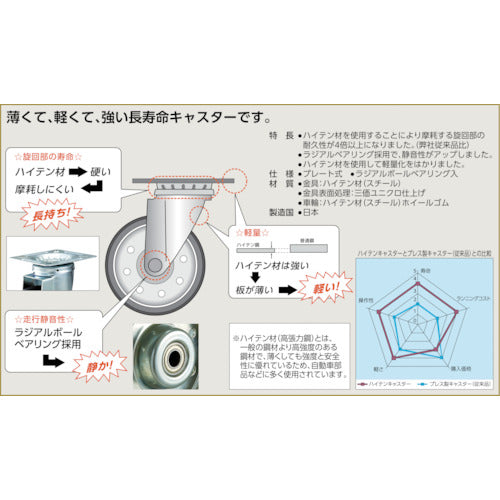

Catalogue number: HTTK-150 Features: ●The use of high-tensile steel has increased the durability of the rotating parts, which are prone to wear, by more than four times (compared to our previous products). ●The use of radial bearings has improved noise reduction. ●The use of high-tensile steel has reduced weight. Uses: ●For mounting on transport carts, etc. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 200 ●Allowable load (kgf): 204 ●Wheel width (mm): 40 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 138 ●Mounting seat B (mm): 92 ●Mounting pitch X (mm): 100-112 ●Mounting pitch Y (mm): 53-56 ●Mounting hole diameter P (mm): 11 ●Fixed type ●Plate type ●Radial ball bearing included Materials/Finish: ●Metal fittings: High-tensile steel (steel) ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: High-tensile steel (steel) wheels, rubber
