TRUSCO Caster High Tensile Pressed Rubber Wheels Swivel S-Mounted Fittings φ150 HTTJB-150 1 pc

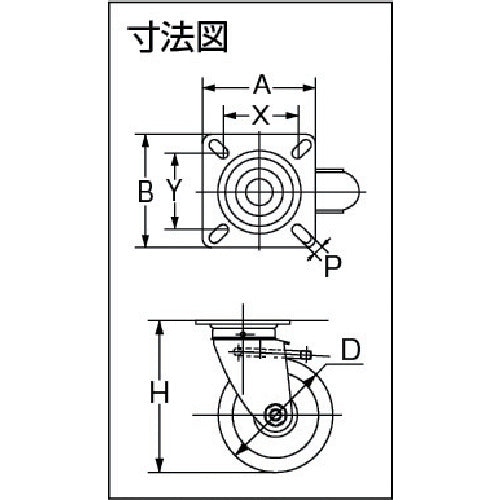

Catalog number: HTTJB-150 Features: *The durability of the rotating parts, which are subject to wear, has increased by more than four times by using high-tensile materials. (Compared to our previous products) *The use of radial bearings has improved noise reduction. *The use of high-tensile materials has reduced the weight. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11 ● Free-wheeling (with double stoppers) ● Locks swivel and wheels simultaneously ● Plate type ● Includes radial ball bearings Materials/Finish: ● Metal fittings: High-tensile material (steel) ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: High-tensile material (steel) wheels, rubber
