TRUSCO Caster TYG Series Swivel SP Included Nylon Wheel 65mm TYGNYB-65 1 pc
TRUSCO Caster TYG Series Swivel SP Included Nylon Wheel 65mm TYGNYB-65 1 pc
Regular price
¥594
Regular price
Sale price
¥594
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

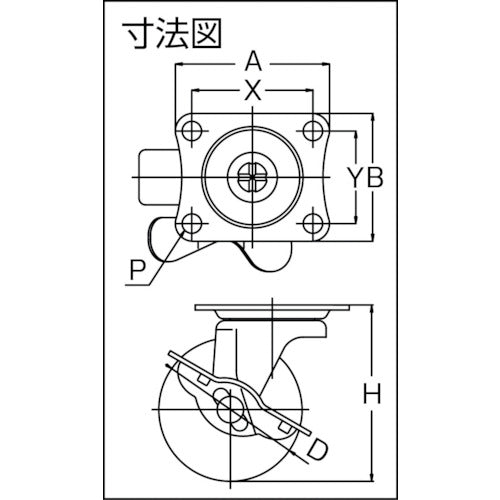

Catalogue number: TYGNYB-65 Features: ● Small caster with excellent mobility and load-bearing capacity. Applications: ● For a wide range of applications, including office equipment, furniture, transport vehicles, and lightweight racks. Specifications: ● Wheel diameter D (mm): 65 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 55 ● Allowable load (kgf): 56.1 ● Wheel width (mm): 25 ● Mounting height H (mm): 80 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
