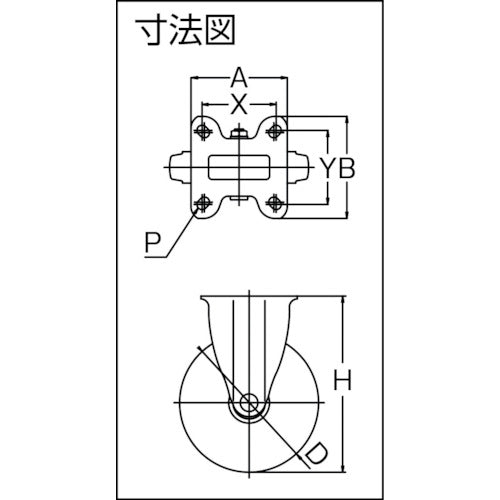

Catalog number: TYSUK-150 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 140 ●Allowable load (kgf): 142.8 ●Wheel width (mm): 40 ●Mounting height H (mm): 190 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100-112 ●Mounting pitch Y (mm): 53-56 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheel, urethane (gray)
