TRUSCO Caster TYS Series Swivel SP Included Rubber Wheel 75mm TYSB-75 1 pc

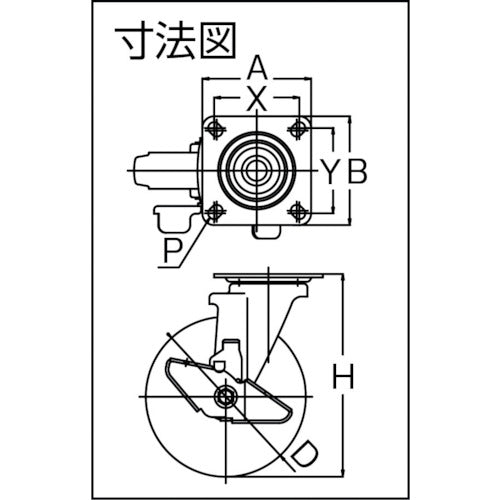

Catalog number: TYSB-75 Features: ● Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster with standard dimensions widely used for transport carts, roll box pallets, and other general work. (Caster diameter 50-75mm, no replacement wheels) ● Double bearings are used for the swivel section. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-swivel type (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-swivel part: Double bearing included ● Free-swivel type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
