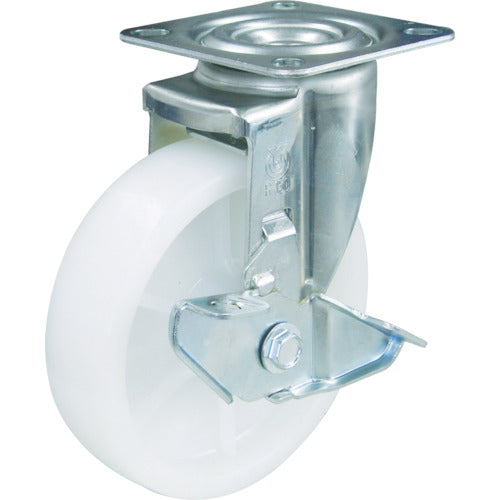

TRUSCO Caster TYS Series Swivel SP Included Nylon Wheel 100mm TYSNYB-100 1 pc

Catalog number: TYSNYB-100 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel (with stopper) ●Allowable load (daN): 120 ●Allowable load (kgf): 122.4 ●Wheel width (mm): 32 ●Mounting height H (mm): 132 ●Mounting seat A (mm): 90 ●Mounting seat B (mm): 90 ●Mounting pitch X (mm): 68-71 ●Mounting pitch Y (mm): 68-71 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●With swivel stopper Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
