トラスコ中山(株)

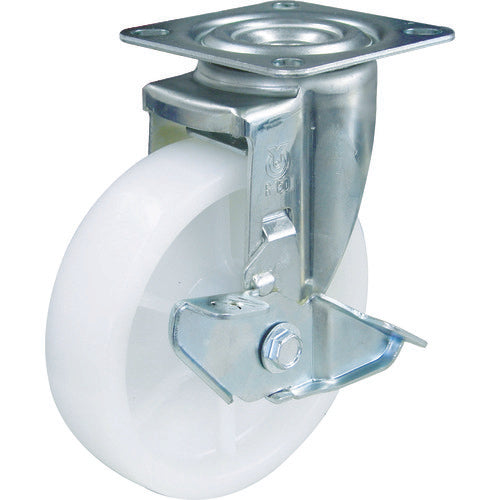

TRUSCO Caster TYS Series Swivel SP Included Nylon Wheel 150mm TYSNYB-150 1 pc
TRUSCO Caster TYS Series Swivel SP Included Nylon Wheel 150mm TYSNYB-150 1 pc
Regular price
¥2,748
Regular price
Sale price
¥2,748
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

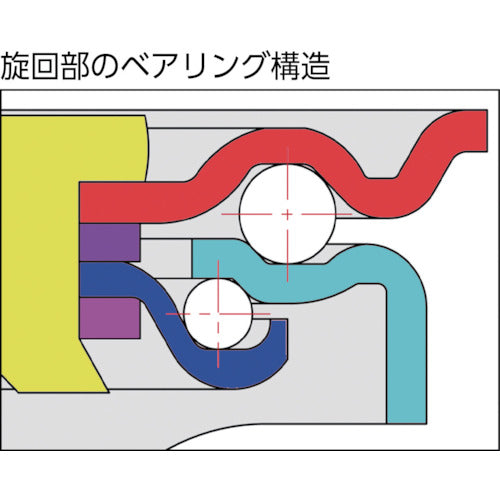

Catalog number: TYSNYB-150 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 150 ●Type: Swivel (with stopper) ●Allowable load (daN): 160 ●Allowable load (kgf): 163.2 ●Wheel width (mm): 40 ●Mounting height H (mm): 190 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Swivel with stopper ●Bearing: Yes Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
