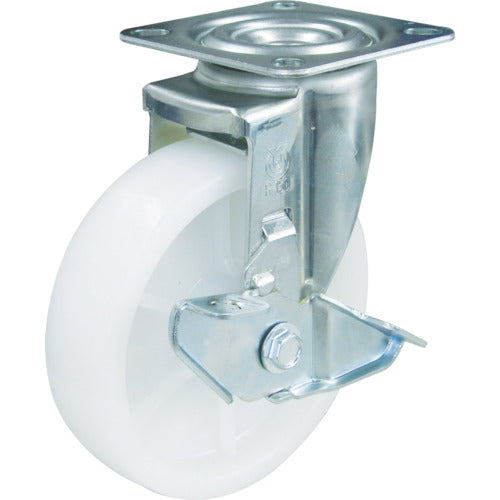

TRUSCO Caster TYS Series Swivel SP Included Nylon Wheel 65mm TYSNYB-65 1 pc

Catalogue number: TYSNYB-65 Features: ●Standard caster for light to medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 65 ●Type: Swivel (with stopper) ●Allowable load (daN): 70 ●Allowable load (kgf): 71.4 ●Wheel width (mm): 25 ●Mounting height H (mm): 85 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Plate type ●With swivel stopper Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
