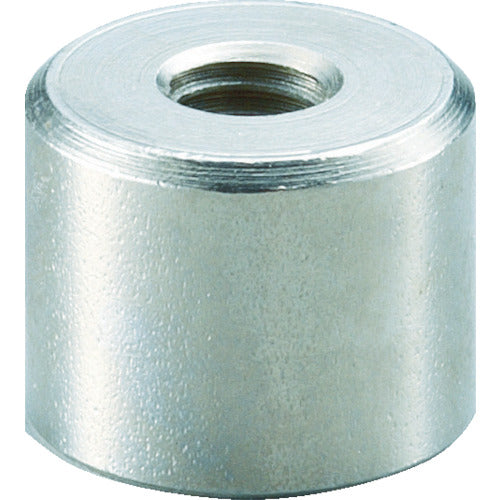

TRUSCO Samarium Cobalt Magnet Holder Φ30X15 TSMG-30 1 pc

Catalog number: TSMG-30 Features: ● A magnet holder that combines the heat resistance (250℃) of samarium cobalt magnets with strong magnetic force. ● High versatility and can be used for a variety of purposes. Applications: ● For embedding in jigs and tools and various suction purposes. Specifications: ● Suction force (N): 180 ● Outer diameter (mm): 30 ● Height (mm): 15 ● Magnet diameter (mm): 25 ● Magnet height (mm): 5 ● Mounting screw: M6×1.0 Depth 9.5 ● Maximum operating temperature: 250℃ Materials/Finish: ● Magnet: Samarium cobalt magnet ● Body: Steel ● Surface treatment: Nickel plating Caution: ● Be careful of the screw depth. ● If screwed in too deeply, the magnet may come off.
