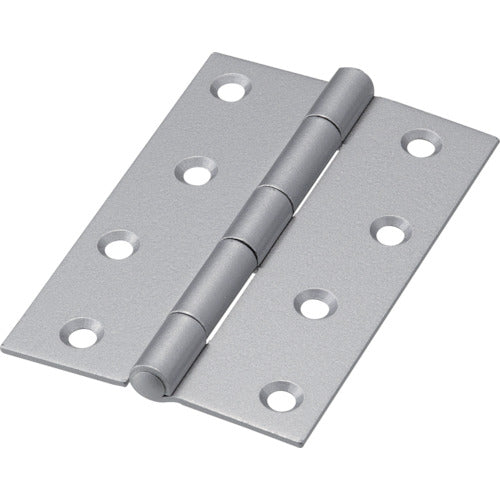

TRUSCO Steel Thick Hinge Silver Paint Finish Total Length 102mm (4 pieces) 888-102SV 1 bag

TRUSCO Steel Thick Hinge Silver Paint Finish Total Length 102mm (4 pieces) 888-102SV 1 bag

JAN：4989999095524 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥887
¥887
Sale Sold out
Shipping calculated at checkout.

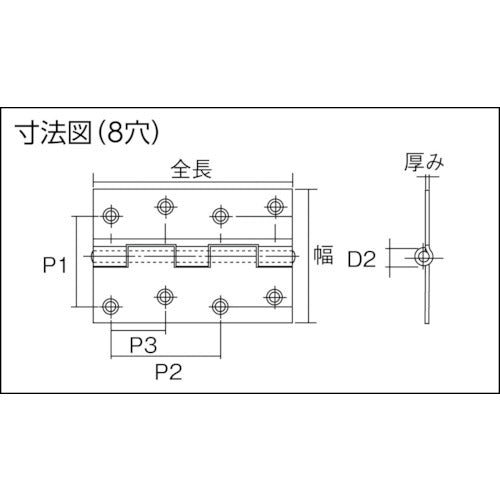

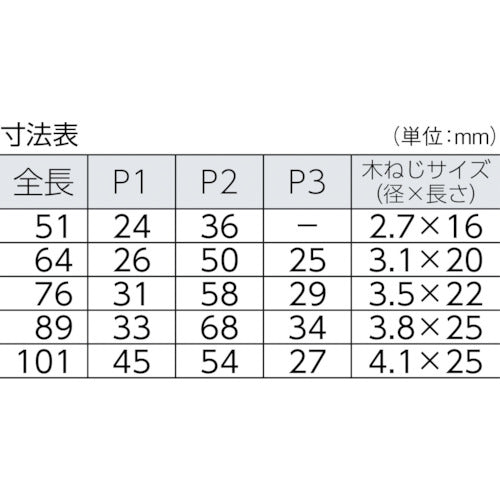

Catalog number: 888-102SV Specifications: ● Total length (mm): 101 ● Width (mm): 68 ● Thickness (mm): 1.8 ● Number of screw holes: 8 ● Hole diameter (mm): 5.6 ● D2 (mm): 9.5 ● Load capacity (kg) when using 2 pieces: 20 ● Number of wood screws: 32 ● Opening angle (°): 300-330 ● Surface treatment: Silver paint finish ● P1 (mm): 45 ● P2 (mm): 54 ● P3 (mm): 27 ● Wood screw diameter x length (mm): 3.8 x 25 ● Installation method: Wood screw (included) Material / Finish: ● Steel (SPCC)
