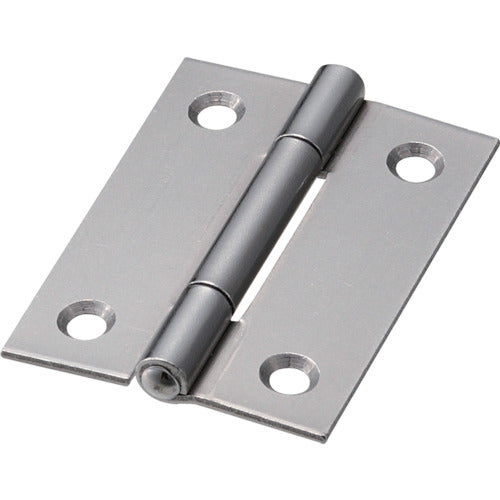

TRUSCO Steel Thick Hinge, Plain Finish, Total Length 51mm (10 Pieces) 888-51N 1 Bag

TRUSCO Steel Thick Hinge, Plain Finish, Total Length 51mm (10 Pieces) 888-51N 1 Bag

JAN：4989999095371 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥475
¥475
Sale Sold out
Shipping calculated at checkout.

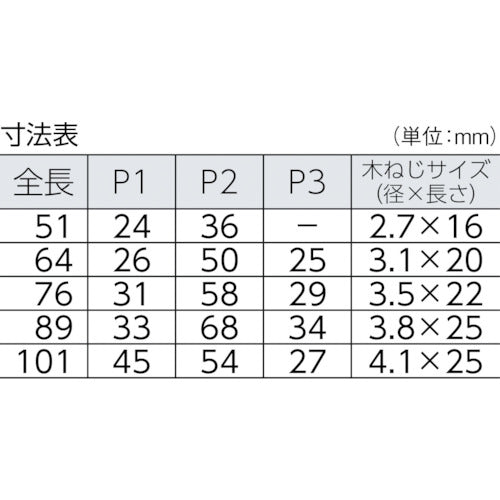

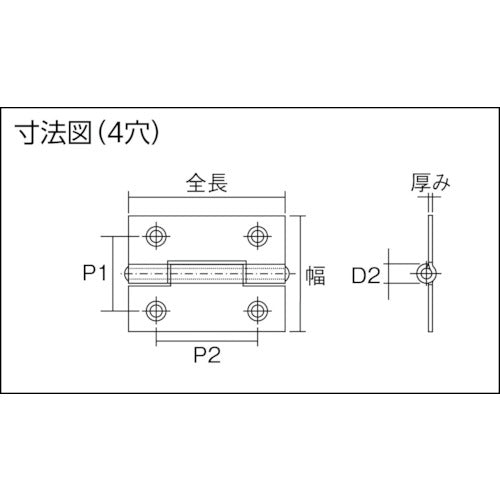

Catalog number: 888-51N Specifications: ● Total length (mm): 51 ● Width (mm): 38 ● Thickness (mm): 1.3 ● Number of screw holes: 4 ● Hole diameter (mm): 4.2 ● D2 (mm): 6.0 ● Load capacity (kg) when using 2 pieces: 5 ● Opening angle (°): 300 to 330 degrees ● Surface treatment: Plain finish ● P1 (mm): 24 ● P2 (mm): 36 ● P3 (mm): - ● Wood screw diameter x length (mm): 2.7 x 16 ● Installation method: Wood screw (sold separately) Material / Finish: ● Steel (SPCC)
