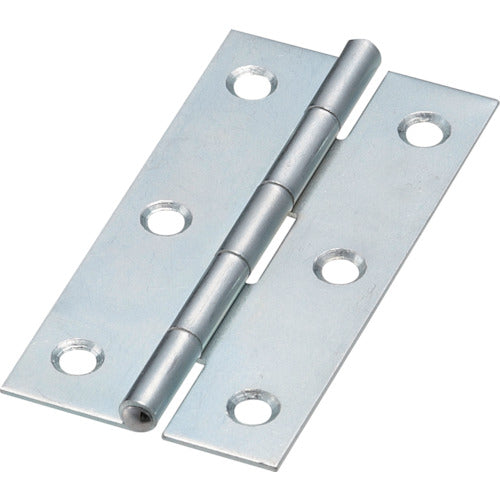

TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 63.5mm 550-64UNCR 1 Bag

TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 63.5mm 550-64UNCR 1 Bag

JAN：4989999096460 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥460
¥460
Sale Sold out
Shipping calculated at checkout.

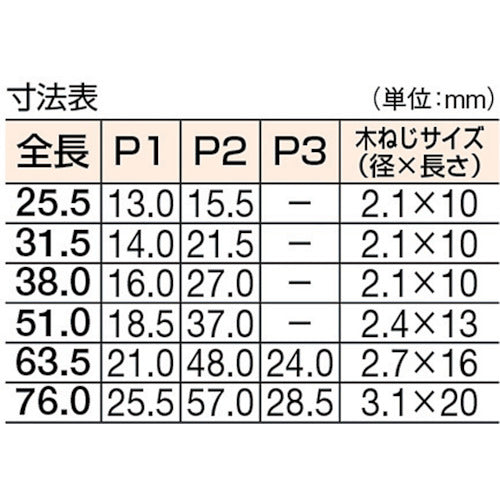

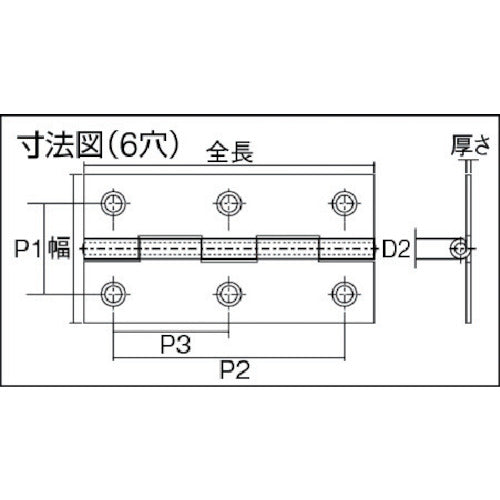

Catalog number: 550-64UNCR Specifications: ● Total length (mm): 63.5 ● Width (mm): 33 ● Thickness (mm): 0.9 ● Number of screw holes: 6 ● Hole diameter (mm): 4.0 ● D2 (mm): 4.5 ● Load capacity (kg) when using 2 pieces: 5 ● Number of wood screws: 60 ● Surface treatment: Trivalent chromium plating finish ● P1 (mm): 21.0 ● P2 (mm): 48.0 ● P3 (mm): 24.0 ● Wood screw diameter x length (mm): 2.7 x 16 ● Installation method: Wood screw (sold separately) ● Opening angle 300 to 330 degrees Material / Finish: ● Steel (SPCC)
