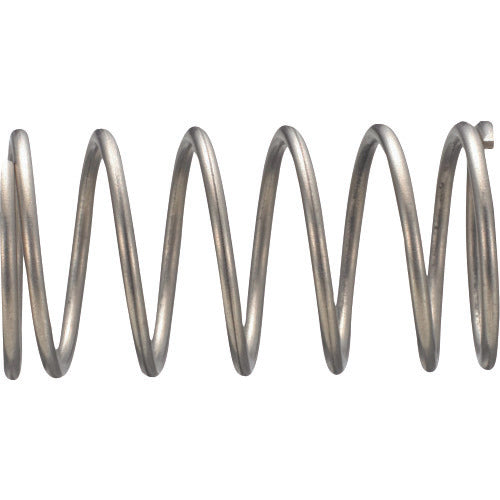

TRUSCO Stainless Steel Compression Coil Spring D17Xd3.2XL52 (2 pieces) TSS-55278 1 PK

Catalog number: TSS-55278 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 3.2 ● Outer diameter D (mm): 17 ● Free height L (mm): 52 ● Number of coils (coils): 13.00 ● Spring constant (N/mm): 31.185 ● Allowable load (N): 298.12 ● Load height L1 (mm): 42.4 ● Solid height (mm): 41.6 ● Free length (mm): 52 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
