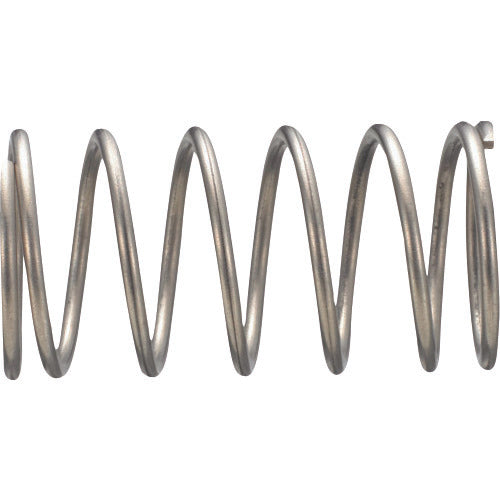

TRUSCO Stainless Steel Compression Coil Spring D28Xd2.6XL75 (2 pieces) TSS-55264 1 PK

Catalog number: TSS-55264 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 2.6 ● Outer diameter D (mm): 28 ● Free height L (mm): 75 ● Number of coils (coils): 10.50 ● Spring constant (N/mm): 2.815 ● Allowable load (N): 110.82 ● Load height L1 (mm): 35.6 ● Solid height (mm): 27.3 ● Free length (mm): 75 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
