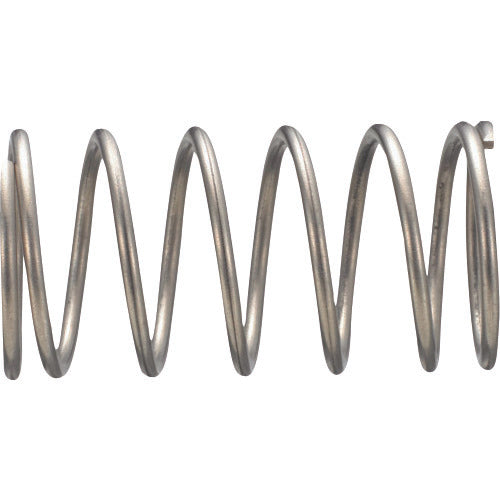

TRUSCO Stainless Steel Compression Coil Spring D2.4Xd0.4XL15.6 (20 pieces) TSS-55083 1 PK

Catalog number: TSS-55083 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.40 ● Outer diameter D (mm): 2.4 ● Free height L (mm): 15.6 ● Number of coils (coils): 20.50 ● Spring constant (N/mm): 1.549 ● Allowable load (N): 6.26 ● Load height L1 (mm): 11.4 ● Solid height (mm): 8.6 ● Free length (mm): 15.6 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
