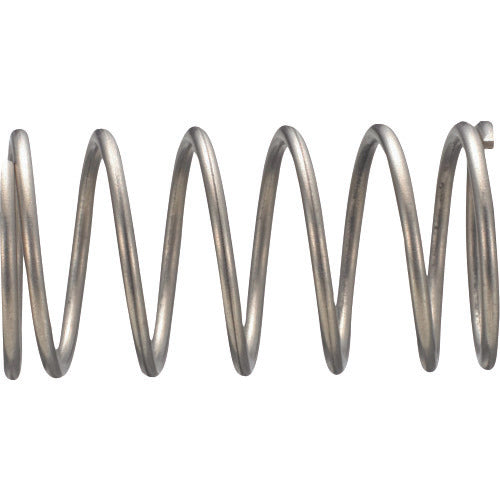

TRUSCO Stainless Steel Compression Coil Spring D3.52Xd0.32XL29.3 (20 pieces) TSS-55059 1 PK

Catalog number: TSS-55059 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.32 ● Outer diameter D (mm): 3.52 ● Free height L (mm): 29.3 ● Number of turns (turns): 20.50 ● Spring constant (N/mm): 0.157 ● Allowable load (N): 2.37 ● Load height L1 (mm): 13.3 ● Solid height (mm): 6.9 ● Free length (mm): 29.3 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
