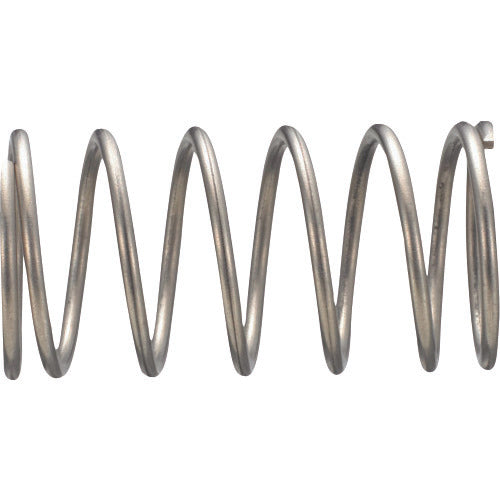

TRUSCO Stainless Steel Compression Coil Spring D5.5Xd0.4XL16 (20 pieces) TSS-55109 1 PK

Catalog number: TSS-55109 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.40 ● Outer diameter D (mm): 5.5 ● Free height L (mm): 16.0 ● Number of turns (turns): 8.00 ● Spring constant (N/mm): 0.275 ● Allowable load (N): 2.75 ● Load height L1 (mm): 6.0 ● Solid height (mm): 3.6 ● Free length (mm): 16.0 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
