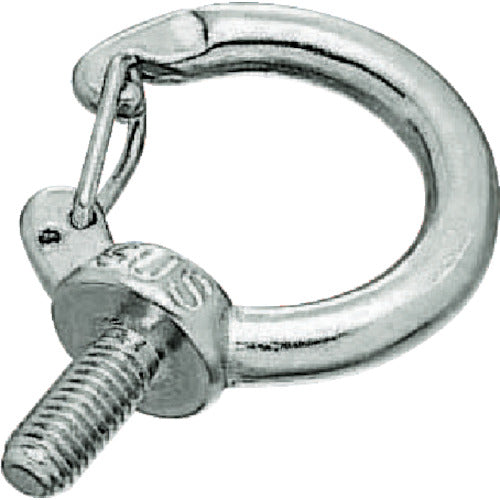

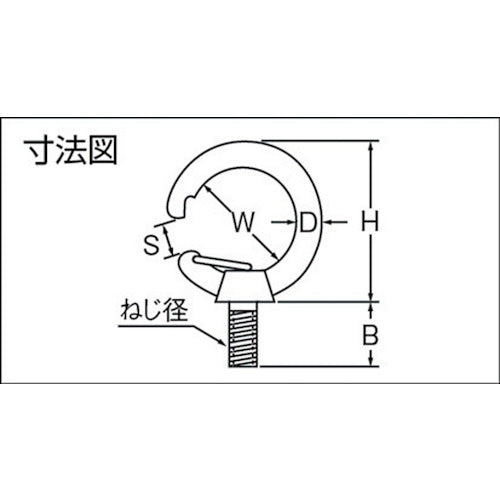

Catalog number: TFIB-8 Features: ● A hook that can be opened and closed is attached to the conventional eye bolt, so you can pass things through it after installation. Uses: ● As a terminal fitting. Specifications: ● Working load (kN): 0.29 ● Thread diameter: M8 x 1.25 ● D (mm): 8 ● B (mm): 20 ● H (mm): 49 ● W (mm): 33 ● S (mm): 9 ● No nut Material/Finish: ● Stainless steel (SUS304)
