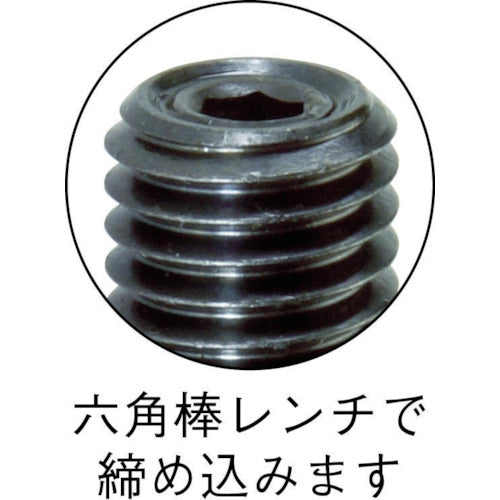

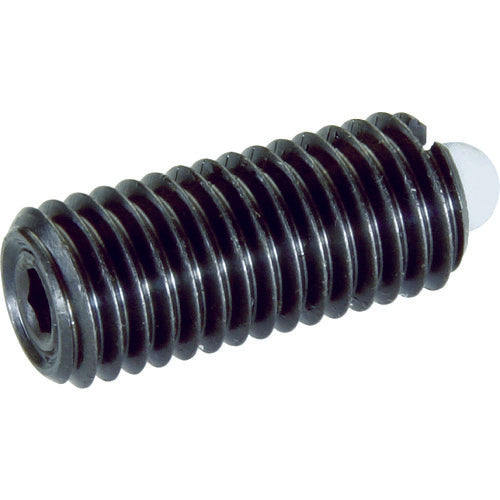

Catalog number: T4PN-R Features: ● A spring plunger with a steel body and a resin pin with a hexagonal hole (back) and a minus groove (front). Applications: ● Used for positioning, fixing, pressing, and pushing away. Specifications: ● Load (N): 4.5 to 16.0 ● Screw dimensions: M4 x 0.70 ● Stroke (mm): 1.5 ● Total length (mm): 15 ● Center pin diameter (mm): 1.5 ● Heat resistance temperature (℃): 50 Material/Finish: ● Body: Steel ● Center pin: Resin (POM)
