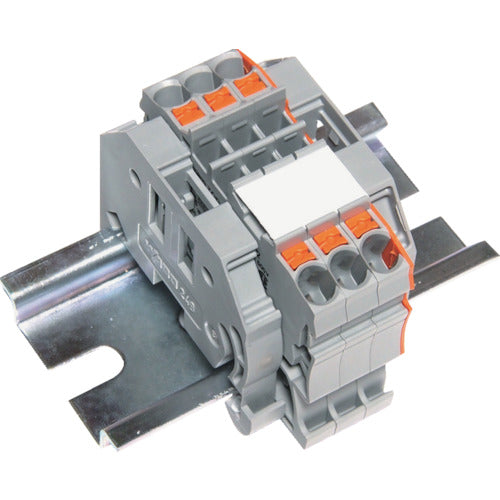

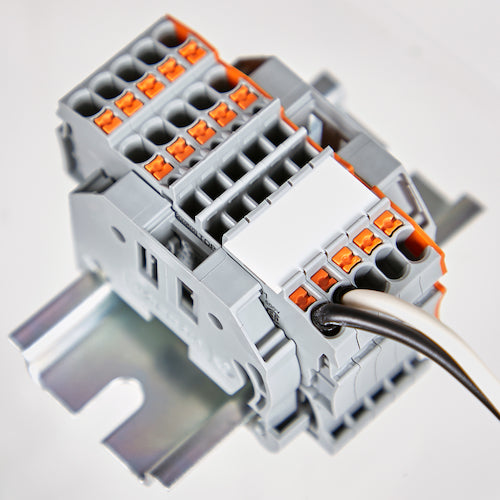

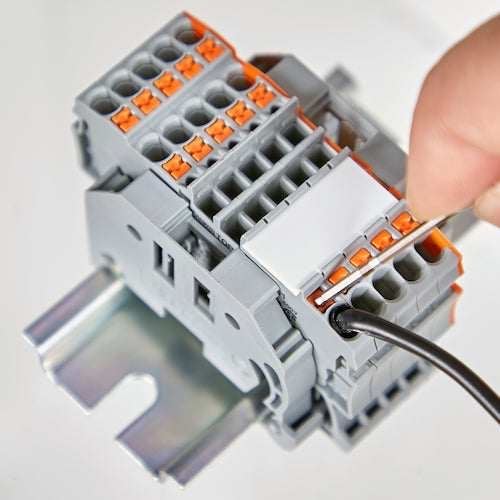

TRUSCO spring terminal block, 2-wire, 3-pole, wire size 0.25 to 2.5, SPTB24A-2-3P, 1 piece

Catalog number: SPTB24A-2-3P Features: ● Spring-type terminal block reduces labor and space, does not loosen and requires no maintenance, and has a push button for easy wiring. ● Solid wires and stranded wires with ferrules can be connected simply by inserting the wires. ● The terminal block and necessary accessories are already assembled on the DIN rail, so it can be used immediately. Applications: ● For connecting wires inside control panels and relay boxes. Specifications: Color: Gray; Button color: Orange; Number of poles: 3; Length (mm): 68; Width (mm): 48.5; Height (mm): 33.0; Type: Spring type; Rating: 800V24A; Compatible with: Wire size: 0.25-2.5mm2; Compatible models: Wire size: 0.25-2.5mm2; Wire size: 0.25-2.5mm2; Terminal thickness: 5.2mm; Wire stripping length: 10-12mm Material/Finish: 66 Nylon Set contents/Accessories: Terminal block x 1, end stop x 2, DIN rail 68mm x 1, marker x 1, end plate x 1; End stop, DIN rail, marker, end plate
