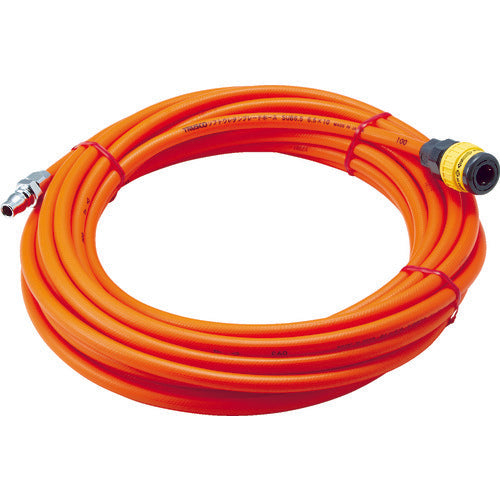

TRUSCO Soft Urethane Braided Hose 6.5 x 10 mm with Coupling SUB-6.5-30A 1 Roll

Catalog number: SUB-6.5-30A Features: High flexibility and less tendency to curl. Resin socket: One-touch lock type. Compatible with general couplings. Specifications: Color: Orange; Outer diameter (mm): 10; Inner diameter (mm): 6.5; Total length (m): 30; Wall thickness (mm): 1.75; Connection joint: Plug type; Allowable bending radius: 40 mm; Fluid used: Air; Fluid temperature: -20 to 60°C (no freezing); Operating pressure: 0.8 MPa Materials/Finish: Hose: Polyurethane resin; Socket: Modified polyphenylene ether (PPE) + polyacetal (POM); Plug: Steel (chrome plated) Caution: The normal temperature environment for the operating pressure is approximately 20°C. Do not use in places where the connecting fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connecting fittings flying out. ● When separating connecting fittings, hold them with your hands. ● After connecting the connecting fittings, pull them gently from both sides to make sure they do not come loose.
