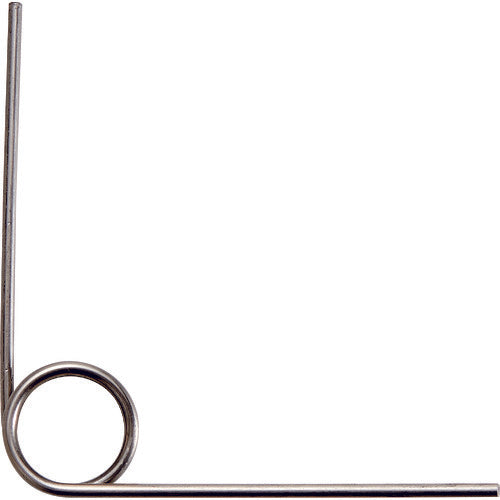

TRUSCO Torsion Spring Stainless Steel D14 x d2.0 x L56 90° 5 turns 2 pieces Left-handed TS-33120LA 1 PK

Catalog number: TS-33120LA Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod is ideally about 90% of the coil inner diameter at maximum load. ● This spring requires force to be pinched back by a clip or similar. Specifications: ● Wire diameter d (mm): 2.0 ● Coil inner diameter D (mm): 14 ● Length L (mm): 56 ● Number of turns (turns): 5 ● Spring constant (N mm/deg): 9.25 ● Allowable displacement (°): 79 ● Arm angle (°): 90 ● Spring constant (N/mm): 9.25 ● Type: Left-handed (LA) ● Product number: TS33120 (winding direction symbol) ● Arm angle: 90° Material/Finish: ● Stainless steel (SUS304-WPB)
