TRUSCO Nylon Wheel Urethane Caster Stainless Steel Metal Fitting Fixed Φ100 TYSGUK-100 1 pc

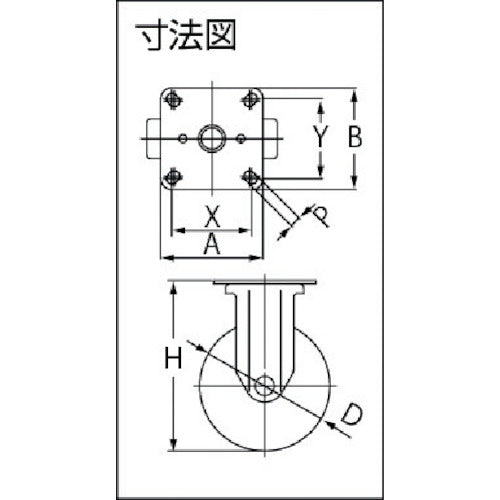

Catalog number: TYSGUK-100 Features: ● Stainless steel (SUS304) is used for the metal fittings, and nylon urethane wheels are used for the wheels, making it highly corrosion-resistant and water-resistant. Applications: ● For use as a trolley for transporting food, medical equipment, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 75 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Wheel material: Nylon wheel urethane ● Caster diameter (mm): 100 ● Mounting seat (mm): 110 x 75 ● Mounting pitch (mm): 80-90 x 45-50 ● Plate type ● Stainless steel radial bearing included ● Fixed type ● Commercial bearing included Material / Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, urethane (gray)
