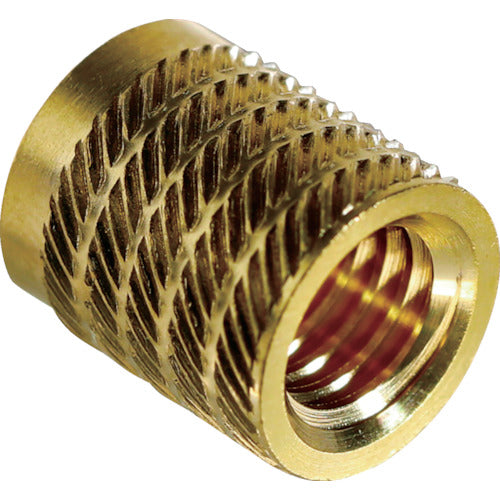

TRUSCO Bit Insert Screw M2 x 6.0 D1 = 4.0 D2 = 4.3 16 pieces Y0SB-M2L6D4 1 PK

Catalog number: Y0SB-M2L6D4 Features: ●Easy to use, well-balanced insert nut in all respects such as retention and cost. ●Threads can be formed mainly by pressing into resin without threads, or by hot pressing with a soldering iron. ●Inserting by hot pressing can prevent the resin from cracking. Uses: ●As a thread reinforcement for resin. Specifications: ●Compatible bolt thread: M2 ●Drill hole diameter (mm): Approximately 4.05 ●Thread designation: M2 ●Thread pitch: 0.4 ●Dimensions (mm) L: 6.0 ●Dimensions (mm) D1: 4.0 ●Dimensions (mm) D2: 4.3 ●Dimensions L (mm): 6.0 ●Applicable material: Thermoplastic resin ●Recommended heating temperature: 200-250℃ Material/Finish: ●Brass Caution: ●When pressing in the insert, force is applied from the top of the mating boss, so make the outer diameter thicker to prevent cracking. ●To prevent scratches on the insert, place a punch or plate on top of the insert and hit it from above with a hammer.
