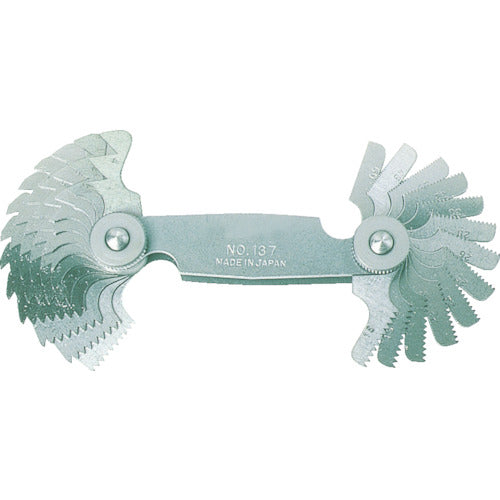

TRUSCO Pitch Gauge Measurement Range 1.0-11.5mm 60° 22 Pieces 159 1 Piece

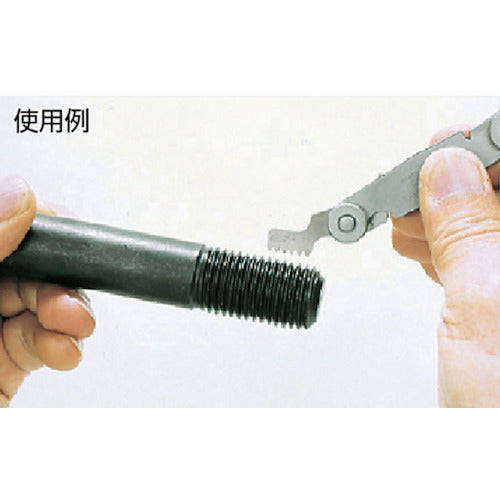

Catalogue number: 159 Features: ● Easily and accurately measure the pitch of general screws. Applications: ● For screw pitch. Specifications: ● Dimensions (mm): 87 x 20 ● Set details (mm): 1.0 to 11.5 (0.5 increments) ● Precision (mm): 1.0 (±0.03), 1.5 to 7.0 (±0.04), 7.5 to 11.5 (±0.07) ● Number of sheets (sheets): 22 ● Thickness (mm): 0.6 ● Set details: 1.0 to 11.5 (0.5 increments) mm ● Set details (number of threads): 60° ● Precision: 0.25 to 1.3 (±0.03 mm) ● 1.4 to 7.0 (±0.05 mm) ● 7.5 to 11.5 (±0.07 mm) ● For millimeters Material/Finish: ● Cold-rolled steel
