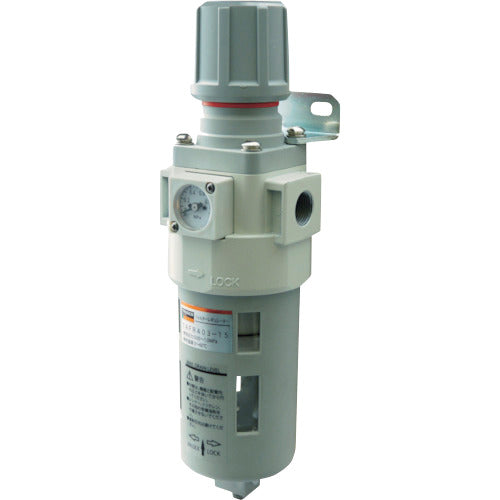

TRUSCO filter regulator, diameter Rc3/8, TAFR403-10-A, 1 piece

Catalogue number: TAFR403-10-A Features: ● A unit that combines an air filter and regulator. ● Pressure gauge size: diameter 20 mm Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 0.05 to 1.0 ● Processed air flow rate (［［M3］］/min): 1.2 ● Set pressure (MPa): 0.1 to 0.85 ● Connection diameter: Rc3/8 ● Overall length (mm): 250 ● Overall width (mm): 72 ● Fluid used: Air ● Drain storage capacity ([[CM3]]): 75 ● Fluid temperature: 5 to 60°C ● Drain discharge method: Manual (however, drains automatically when pressure falls below 0.05MPa) ● Pressure gauge and bracket included
