TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 1-12 100 Pieces FT1012-R 1 Bag

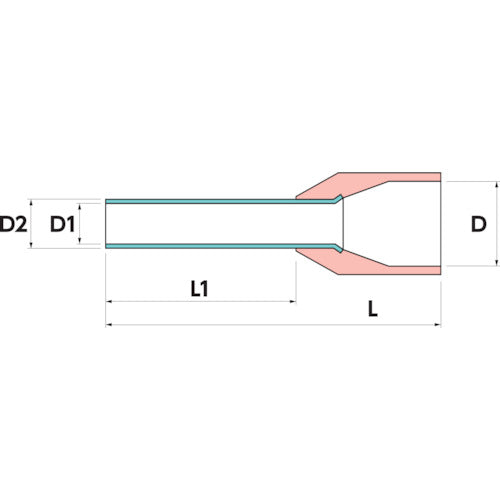

Catalog number: FT1012-R Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 1.0 ● Wire compatibility range AWG: 18 ● Color: Red ● L (mm): 18.3 ● L1 (mm): 12 ● D (mm): 3 ● D1 (mm): 1.4 ● D2 (mm): 1.7 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
