TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 35-25 50 Pieces FT35025-R 1 Bag
TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 35-25 50 Pieces FT35025-R 1 Bag
Regular price
¥2,550
Regular price
Sale price
¥2,550
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

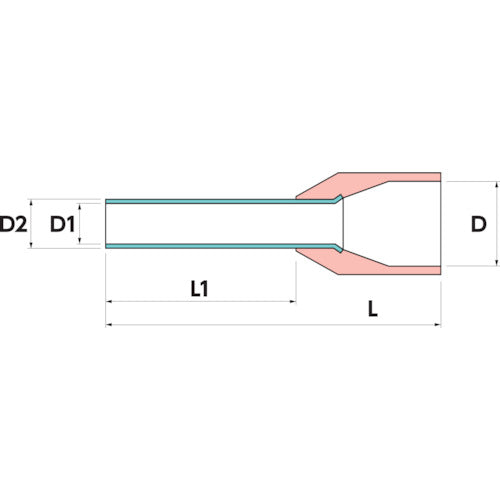

Catalog number: FT35025-R Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 35 ● Wire compatibility range AWG: 2 ● Color: Red ● L (mm): 39 ● L1 (mm): 25 ● D (mm): 12.7 ● D1 (mm): 8.3 ● D2 (mm): 8.7 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
