TRUSCO Flange Nuts with Serrations Stainless Steel M3 20 Pieces B134-0003 1 PK

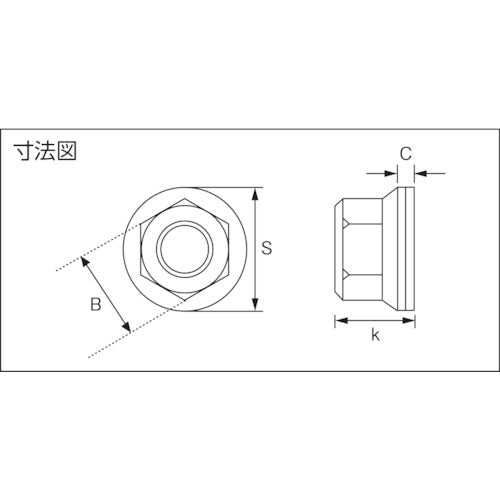

Catalog number: B134-0003 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M3 x 0.50 ● Two-sided width dimension (mm): 5.5 ● Height (mm): 3.7 ● Flange diameter (mm): 8.0 ● Thread pitch (mm): 0.5 ● Dimension (mm) B: 5.5 ● Dimension (mm) C: 1.0 ● Dimension (mm) S: 8.0 ● Dimension (mm) k: 3.7 ● Two-sided width B (mm): 5.5 ● Package: Bolt-on pack (blister) ● Serrated (with serrated seat surface) Material/Finish: ● Stainless steel (equivalent to SUS304)
