TRUSCO Flange Nuts with Serrations Stainless Steel M4 20 Pieces B134-0004 1 PK

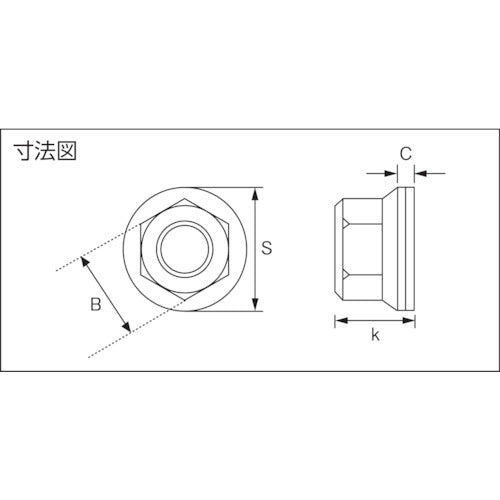

Catalog number: B134-0004 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M4 x 0.70 ● Two-sided width dimension (mm): 7 ● Height (mm): 4.5 ● Flange diameter (mm): 10.0 ● Thread pitch (mm): 0.7 ● Dimension (mm) B: 7.0 ● Dimension (mm) C: 1.1 ● Dimension (mm) S: 10.0 ● Dimension (mm) k: 4.5 ● Two-sided width B (mm): 7.0 ● Package: Bolt pack (blister) ● Serrated (with serrated seat surface) Material/Finish: ● Stainless steel (equivalent to SUS304)
