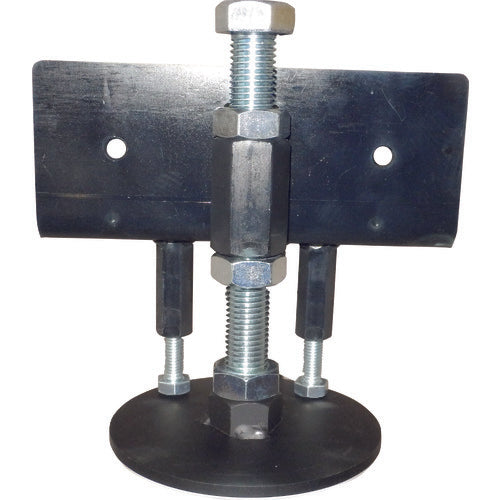

TRUSCO Frame Holder H1 (for 60-80mm) TKP MS-705H1TKP 1 S

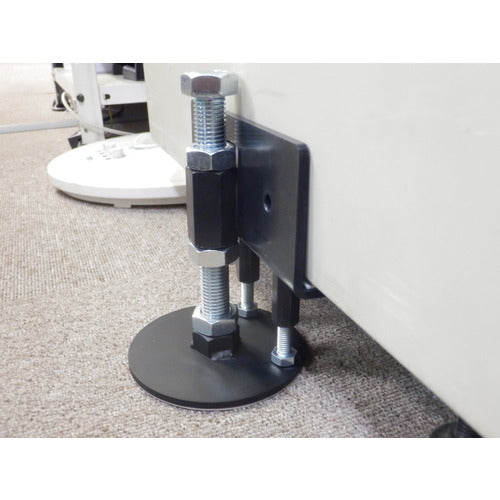

Catalog number: MS-705H1TKP Features: ● A frame holder that uses a strong adhesive pad, so no drilling is required. ● This product prevents the toppling or movement of factory equipment and devices that are difficult to fix with level adjusters. ● The bottom of the equipment and devices is glued and fixed with an L-plate connected to a disk glued to the floor. ● Since the disk is glued and fixed, there is no need to drill holes that would damage the floor surface like with anchors, and there is no need to move the equipment when installing. ● No marks are left when removed. Applications: ● For places where you want to reinforce earthquake resistance without using a level adjuster and without stopping operating equipment. Specifications: Height adjustment range (mm): 60-80 Body dimensions (mm) width x length x thickness: 154 x 120 x 155 Target weight: 500 kg or less / 1 piece Material / Finish: Acrylic adhesive Treated steel plate Plated screws Set contents / Accessories: Body x 1: Product details (disc with adhesive pad: 1, L bracket with adhesive pad: 1, M16 nut: 2, M8 bolt: 2, M16 hex bolt: 1), Primer B x 2, Instruction manual Primer B (5 g) x 2
