TRUSCO Frame Holder H4 (for 140-150mm) TKP MS-705H4TKP 1 S

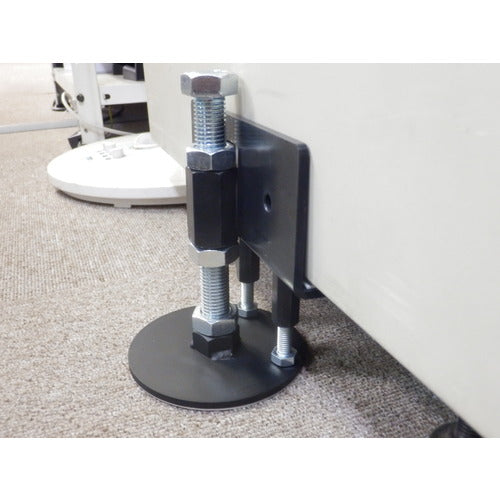

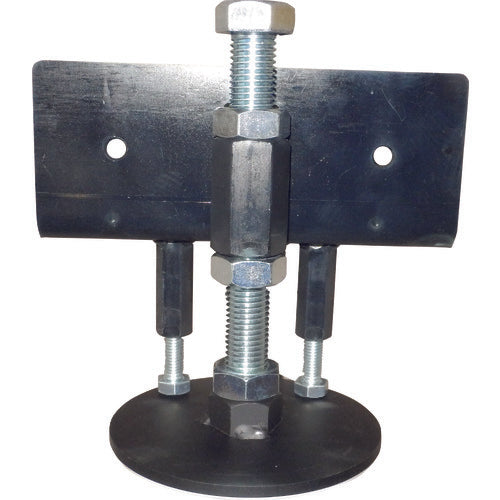

Catalog number: MS-705H4TKP Features: ● A frame holder that uses a strong adhesive pad, so no drilling is required. ● A product that prevents the toppling or movement of factory equipment and devices that are difficult to fix with level adjusters. ● The bottom of the equipment and devices is glued and fixed with an L-plate connected to a disk glued to the floor. ● Since the disk is glued and fixed, there is no need to drill holes that would damage the floor surface like with anchors, and there is no need to move the equipment when installing. ● No marks are left when removed. Applications: ● For places where you want to reinforce earthquake resistance without stopping operating equipment without using level adjusters. Specifications: Height adjustment range (mm): 140-150 Body dimensions (mm) width x length x thickness: 154 x 120 x 225 Target weight: 500 kg or less / 1 piece Material / Finish: Acrylic adhesive Treated steel plate Plated screws Set contents / Accessories: Body x 1: Product details (disc with adhesive pad: 1, L bracket with adhesive pad: 1, M16 nut: 2, M8 bolt: 2, M16 hex bolt: 1), Primer B x 2, Instruction manual Primer B (5 g) x 2
