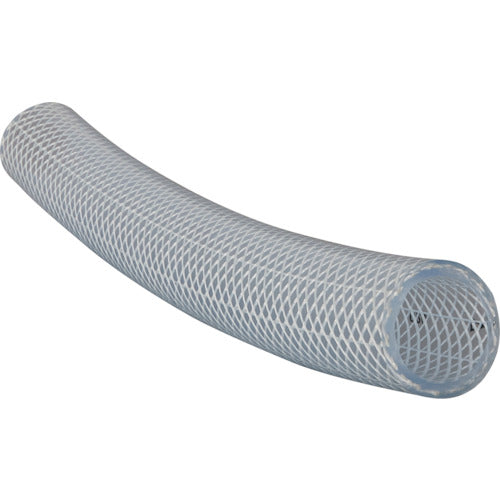

TRUSCO Braided Hose 15 x 22 mm 3M TB-1522-3 1 piece

Catalog number: TB-1522-3 Features: ●Excellent pressure resistance, elasticity, resilience, and bending strength. ●Can be cut up to a maximum length of 99m. Applications: ●Industrial air and water piping for machine tools, molding machines, factory equipment, etc. Specifications: ●Length (m): 3 ●Inner diameter (mm): 15 ●Outer diameter (mm): 22 ●Operating pressure (MPa): 1.0 ●Allowable bending radius (mm or more): 105 ●Operating temperature range (℃): 0 to 60℃ ●Total length (m): 3 ●Allowable bending radius: 105 ●Color: Clear ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range: 0 to 60℃ ●Color: Clear Material/Finish: ●Soft polyvinyl chloride resin (PVC) + polyester thread
