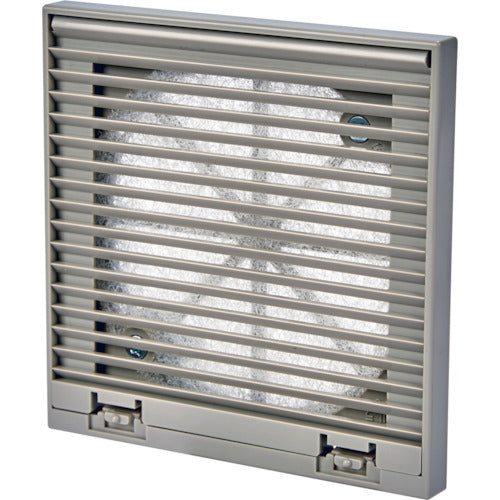

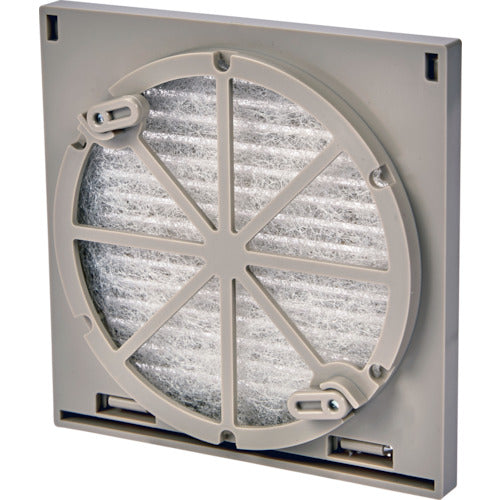

TRUSCO Plastic Gallery Indoor round hole mounting type TGPR-90W 1 unit

Catalog number: TGPR-90W Features: ●The louver part can be removed by pressing down the louver knob. ●Gallery installation and replacement can be done from the front. ●The round hole shape of the mounting panel makes it easy to add additional work, making it suitable for additional installation due to design changes. Applications: ●For ventilation openings in control panels, operation panels, etc. Specifications: ●Depth (mm): 18 ●Width (mm): 100 ●Shape: 5Y7/1 ●Height (mm): 100 ●Panel cut dimensions Height x Width (mm): 90 ●Fan voltage (V): 100 ●Front maintenance possible Nonwoven fabric collection efficiency 68% ●Panel cut dimensions 90mm Material/Finish: ●Body: ABS resin ●Filter: Nonwoven fabric Caution: ●Appropriate torque value (0.6N・M). Overtightening may cause deformation or damage.
