TRUSCO Pressed Urethane Caster, Swivel, Φ75, TUJ-75, 1 pc

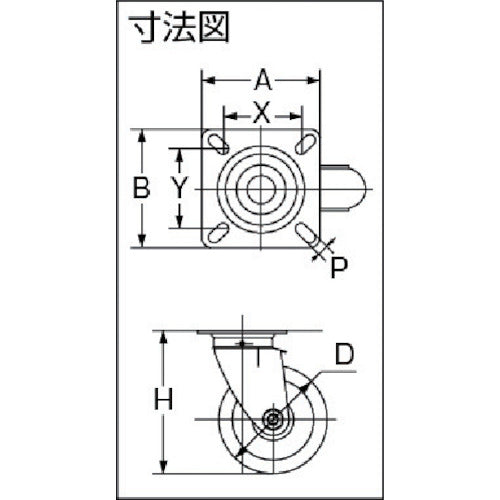

Catalogue number: TUJ-75 Features: ●The steel wheels have a distinctive star shape with a good design. ●The swivel section uses double bearings to achieve smooth rotation. ●The wheel rotation section has commercial bearings for excellent durability. ●The urethane wheels have excellent wear and oil resistance. Applications: ●For mounting on transport carts, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 120 ●Allowable load (kgf): 123 ●Wheel width (mm): 32 ●Mounting height H (mm): 100 ●Mounting seat A (mm): 82 ●Mounting seat B (mm): 82 ●Mounting pitch X (mm): 63 ●Mounting pitch Y (mm): 63 ●Mounting hole diameter P (mm): 9.5 ●Allowable load (N): 1200 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Steel wheels, urethane (green)
