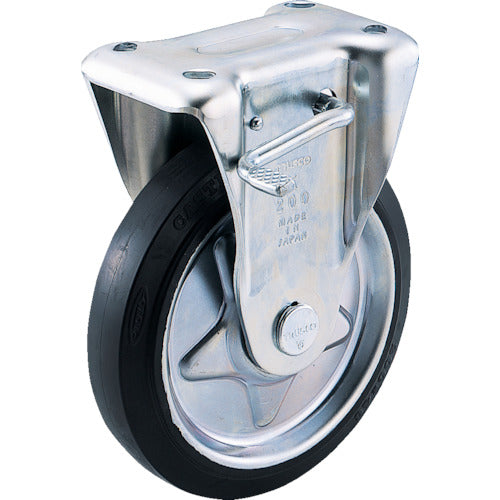

TRUSCO Pressed Rubber Caster with Fixed Stopper Φ150 TKB-150 1 pc

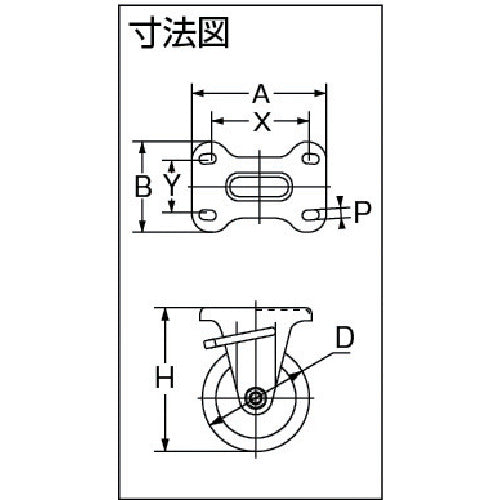

Catalog number: TKB-150 Features: * The wheel rotation part has a radial bearing and is highly durable. * The steel wheel has a distinctive star shape that is well designed. * Comes with a stopper for the fixed wheel. When used in combination with casters with swivel stoppers, all four wheels are locked. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed (with stopper) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 45 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 138 ● Mounting seat B (mm): 92 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 53-56 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 2000 ● Plate type ● Wheel rotating part: Commercial bearing included ● Fixed type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating ● Wheels: Steel wheels, rubber
