TRUSCO Pressed Rubber Caster with Fixed Stopper Φ75 TKB-75 1 pc

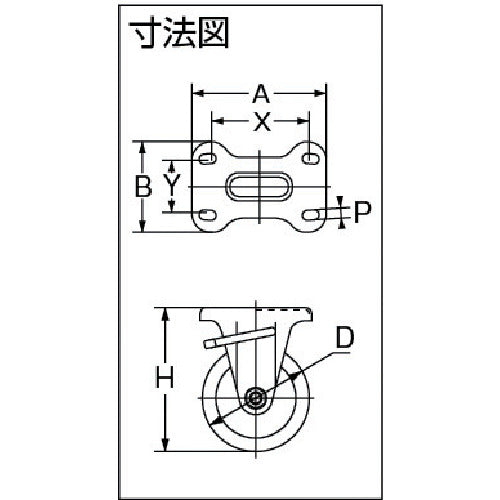

Catalog number: TKB-75 Features: * The wheel rotation part has a radial bearing and is highly durable. * The steel wheel has a distinctive star shape that is well designed. * Comes with a stopper for the fixed wheel. When used in combination with a caster with a swivel stopper, all four wheels are locked. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed (with stopper) ● Allowable load (daN): 80 ● Allowable load (kgf): 82 ● Wheel width (mm): 32 ● Mounting height H (mm): 100 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 72 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 9.5 ● Allowable load (N): 800 ● Plate type ● Wheel rotating part: Commercial bearing included ● Fixed type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating ● Wheels: Steel wheels, rubber
