TRUSCO Pressed Noise-reducing Caster, Swivel, Φ125, TXUJ-125, 1 pc

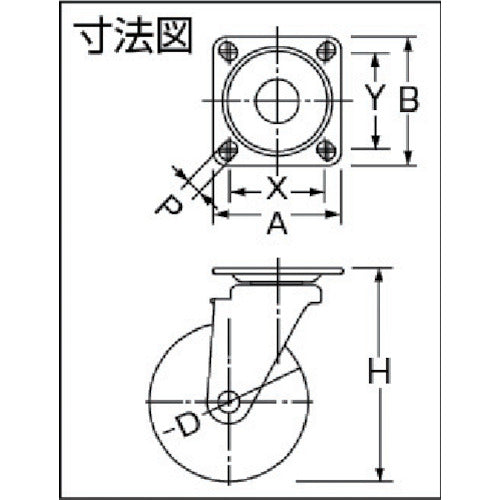

Catalog number: TXUJ-125 Features: ●Free from unpleasant noises such as the running noise peculiar to casters. (Noise-free type) ●Reduced resistance when starting to push, making it very easy to turn and rotate. ●The wheels have a unique star-shaped pattern. Uses: ● For mounting on transport carts, etc., for reducing noise Specifications: ● Wheel diameter D (mm): 125 ● Type: Free-swiveling ● Allowable load (daN): 130 ● Allowable load (kgf): 133 ● Wheel width (mm): 40 ● Mounting height H (mm): 168 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1300 ● Country of manufacture: Japan ● Wheel material: Nylon wheel urethane ● Caster diameter (mm): 125 ● Mounting seat (mm): 110 x 110 ● Mounting pitch (mm): 75-90 x 75-90 ● Plate type ● Swivel and rotating parts: Uses radial ball bearings ● Free-swiveling Material/Finish: Metal fittings: Steel; Metal fitting surface treatment: Trivalent chromium finish; Wheels: Nylon wheels, urethane (ivory)
