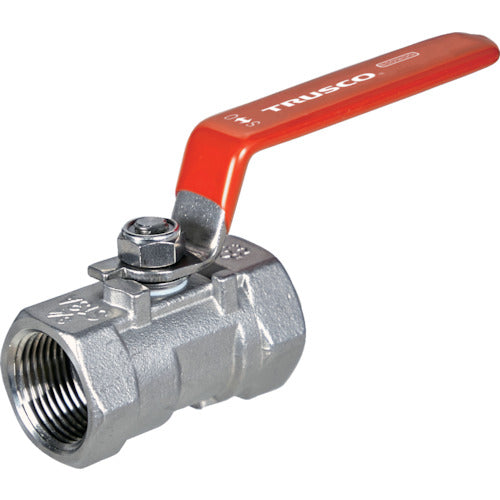

TRUSCO Ball Valve Reduced Bore Type (800 Type, Stainless Steel SCS13A) 11/4 BAV-SR32A 1 pc

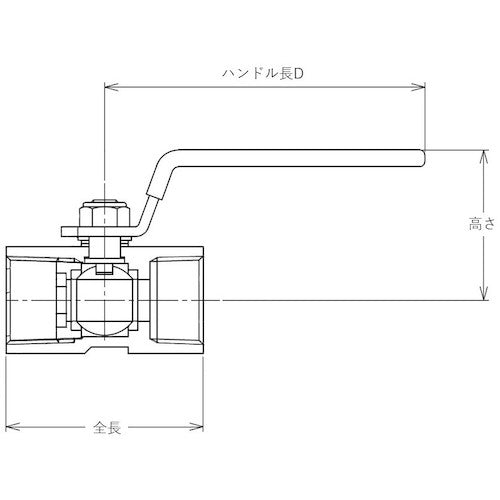

Catalog number: BAV-SR32A Features: ● Ball valve used for hot and cold water, oil, and air. Applications: ● For water, oil, and air. (Steam is not allowed) Specifications: ● Nominal diameter A: 32 ● Nominal diameter B: 11/4 ● Overall length (mm): 78 ● Height (mm): 78 ● Handle length D (mm): 106 ● Maximum allowable pressure (MPa): 5.5 ● Connection: Screw-in connection ● Maximum allowable pressure: 5.5MPa (water and oil at room temperature), 1.0MPa (air at room temperature, water below 100°C, oil below 195°C) ● Reduced bore type Material/Finish: ● Stainless steel (SCS13A)
