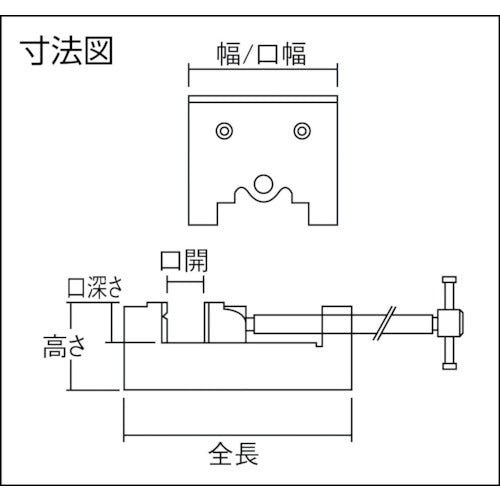

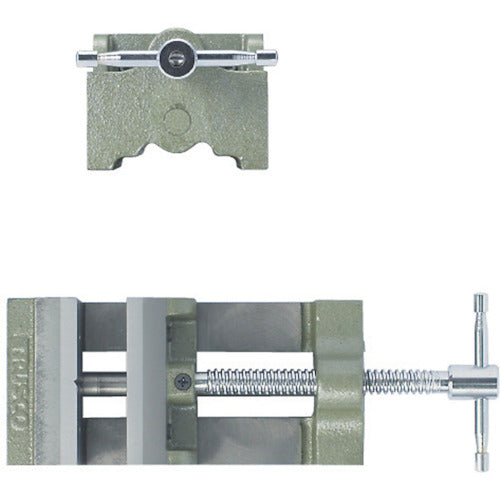

Catalog number: YV-100S Features: ● Made of cast steel, so it is very durable. ● The main body and slide part are made parallel. ● Can be used vertically and horizontally. Specifications: ● Total length (mm): 218 ● Width (mm): 101 ● Height (mm): 81 ● Jaw width (mm): 101 ● Jaw opening (mm): 99 ● Jaw depth (mm): 44 ● Clamping pressure (kN): 17 ● Type: Yankee vise ● Mounting dimensions (mm): 217 x 100 ● Mounting dimensions (mm) G: 217 ● Mounting dimensions (mm) H: 100 Material/Finish: ● Main body: Cast iron Note: ● Jaw parts are not available because the height can be adjusted after the jaw is installed.
