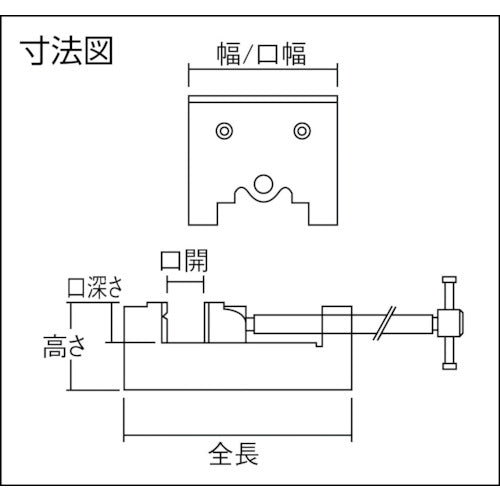

Catalog number: YV-75S Features: ● Made of cast steel, so it is very durable. ● The main body and slide part are made parallel. ● Can be used vertically and horizontally. Specifications: ● Total length (mm): 185 ● Width (mm): 75 ● Height (mm): 73 ● Jaw width (mm): 75 ● Jaw opening (mm): 76 ● Jaw depth (mm): 43 ● Clamping pressure (kN): 14 ● Type: Yankee vise ● Mounting dimensions (mm): 185 x 75 ● Mounting dimensions (mm) G: 185 ● Mounting dimensions (mm) H: 75 Material/Finish: ● Main body: Cast iron Note: ● Jaw parts are not available because the height can be adjusted after the jaw is installed.
